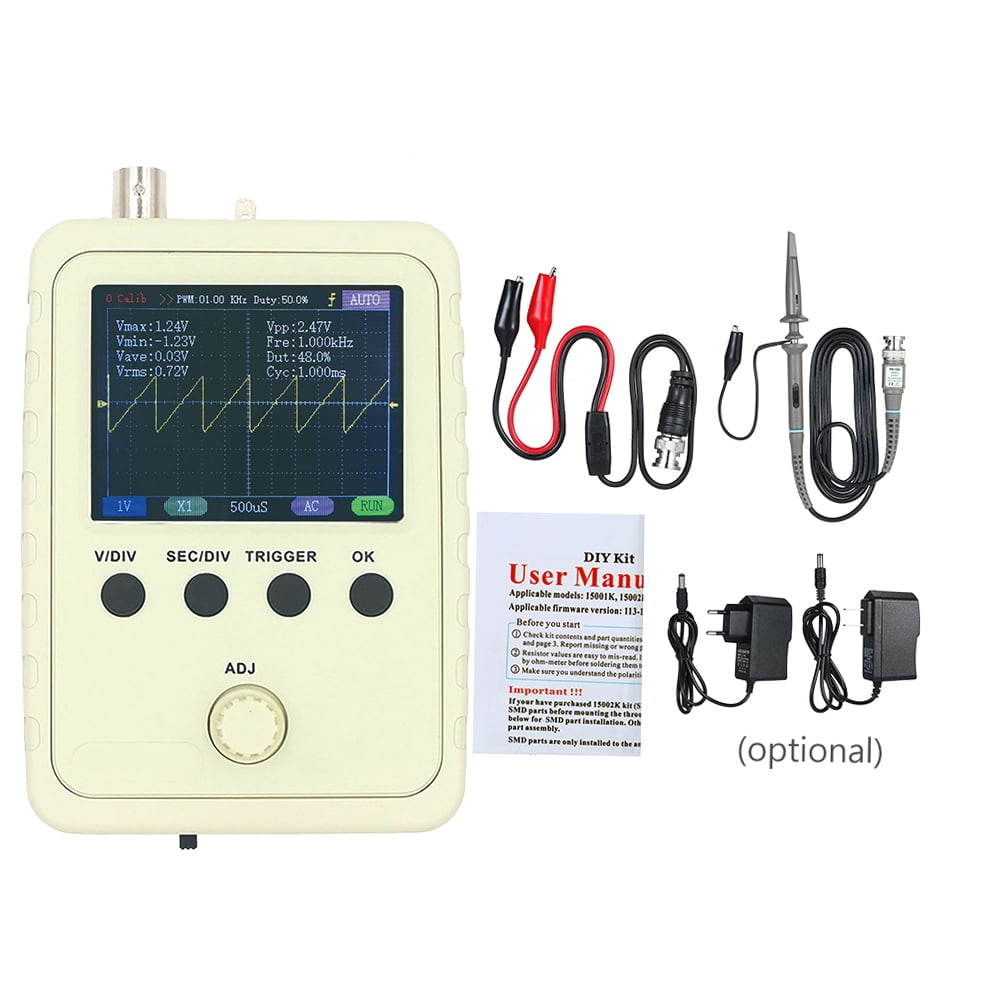

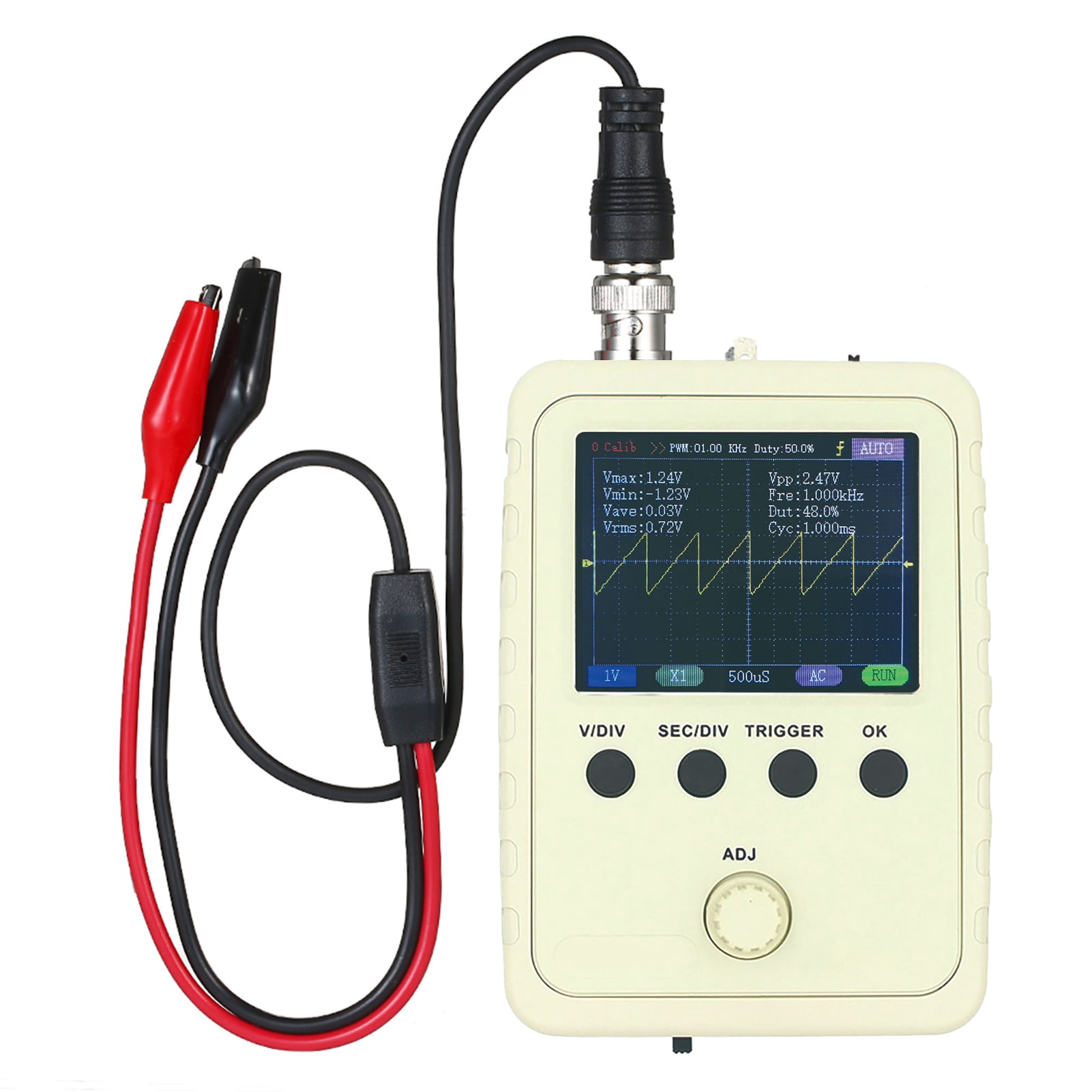

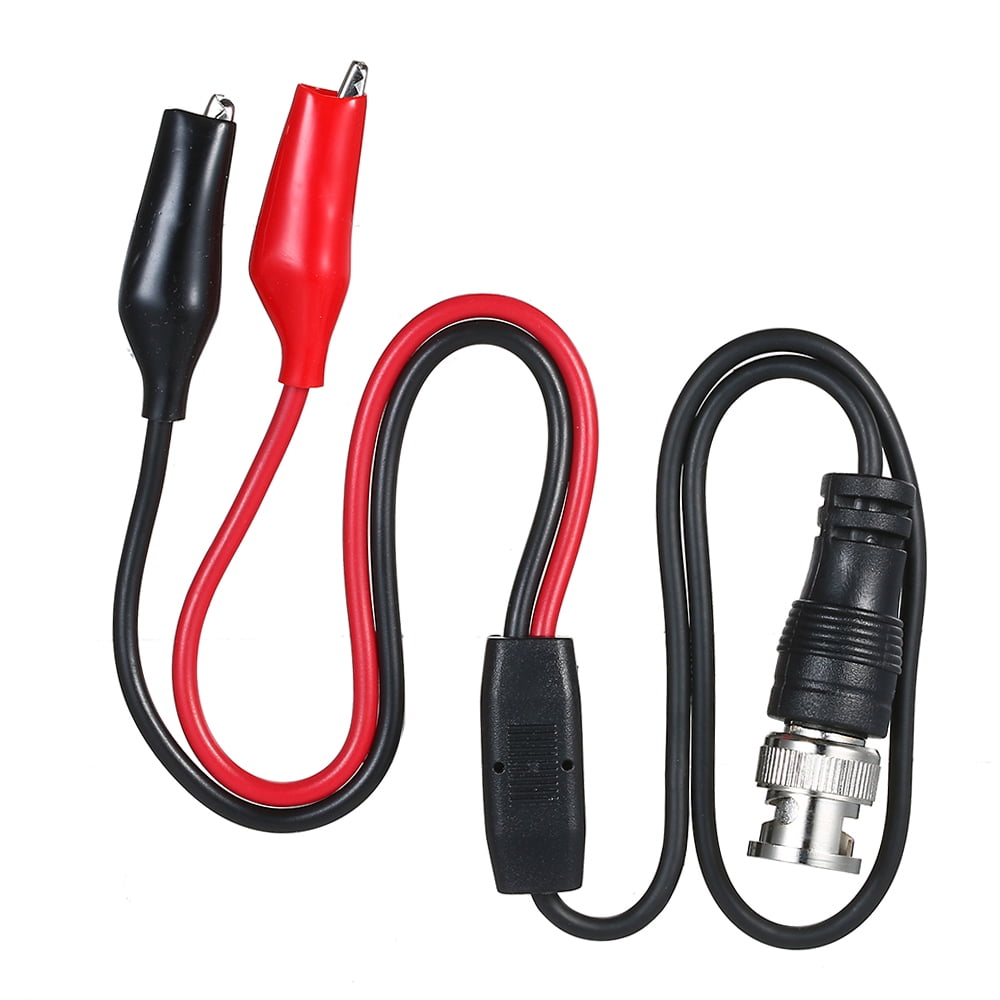

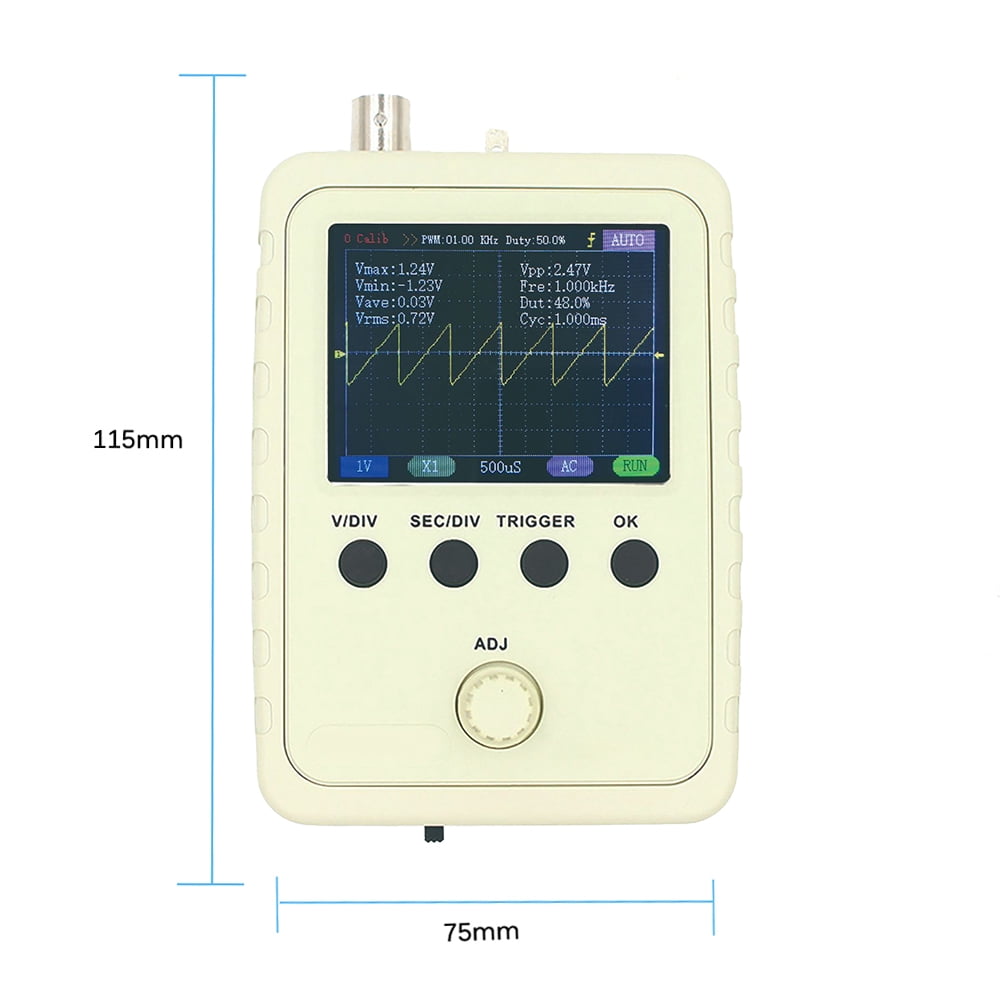

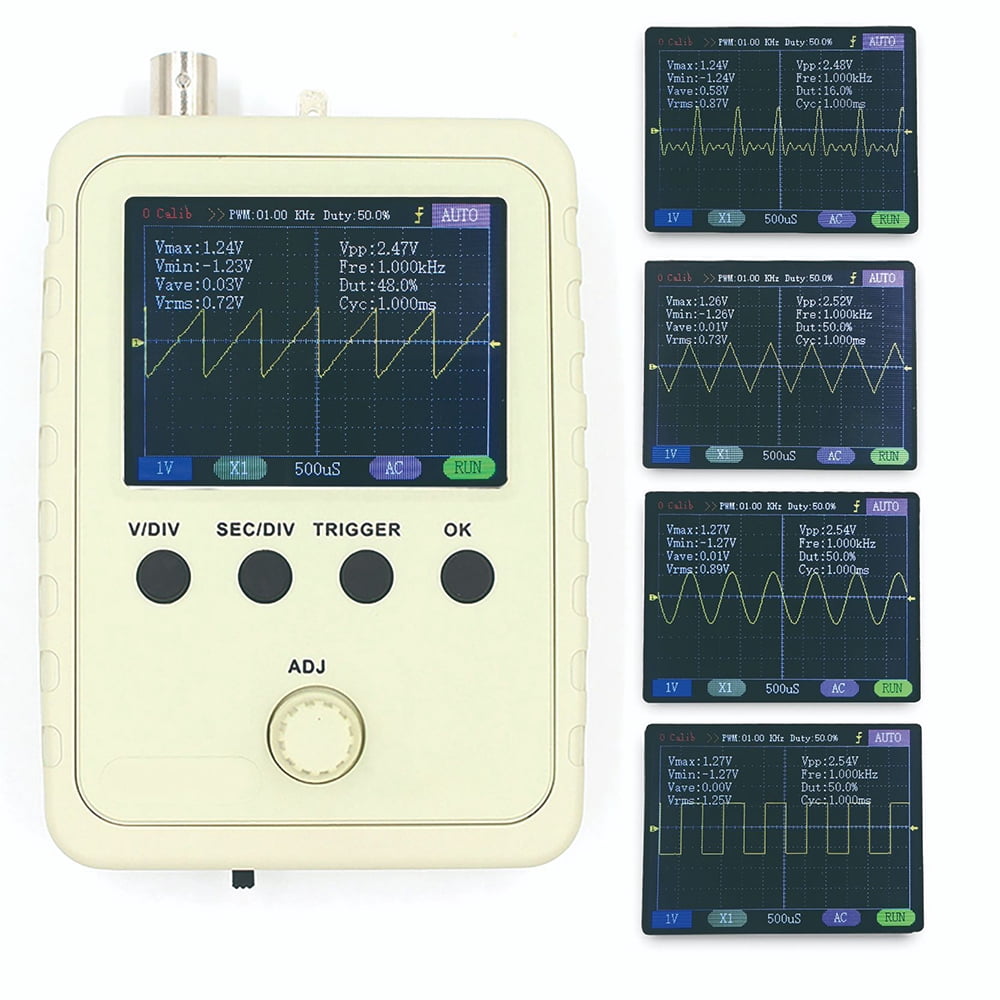

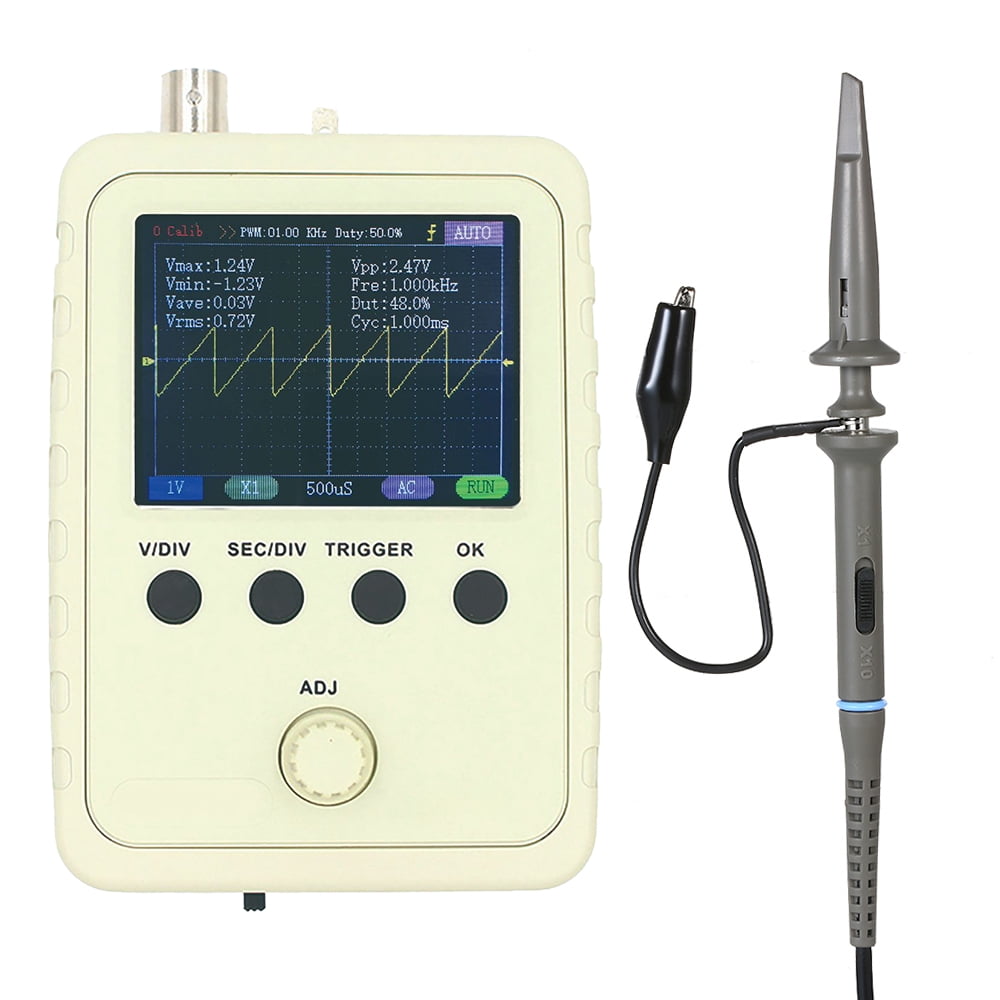

2.4-inch TFT Digital Oscilloscope Kit with Power Adapter and BNC-Clip Cable Probe (Assembled Finished Machine) Will not lose waveform after powering off. Used for secondary development on basis of this kit, for example, it can be changed to millivoltmeter, data loggers. Come with instructions, easy to install and operate. Waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. TFT controller recognition function. Can help user find out soldering error. Observable previous waveform before trigger (negative delay). Auto/normal/single trigger modes, easy to capture moment waveform. Adopts ARM - processor (STM32F103C8), and includes a 2.4-inch color TFT display screen Can freeze waveform display at any time (HOLD function). has been soldered, more suitable for electronic beginners. Available rising or falling edge trigger.<br><br>Note:<br>Due to light and screen difference, item's color may be slightly different from pictures.<br>Please allow 1-3cm differences due to manual measurement.<br><br>Specifications:<br>Type: Finished Product<br>Input Impedance: 1M ohms/20pF<br>Product Size: 115 * 75 * 22mm / 4.53 * 2.95 * 0.87in<br>Maximum Input Voltage: 50Vpk (1X probe)<br>Sensitivity : 5mV/Div - 20V/Div<br>Resolution: 12 bits<br>Maximum Real-time Sampling Rate: 1MSa/s<br>Package Size: 202*110*38mm/7.95*4.33*1.50in<br>Time Base : 10us/Div - 500s/Div<br>Package Weight: 314g/11.07oz<br>Trigger Modes: Auto, Normal, and Single<br>Product Weight: 92g / 3.24oz<br>Analog Bandwidth: 0-200KHz<br>Number of Channel: 1<br>Sensitivity error: &lt; 5%<br>Supply Voltage: 9V(8-10V Acceptable)<br>Record Length: 1024 points<br>Coupling Modes: / AC / GND<br>Current Consumption: ~120mA @ 9V<br>Trigger Types: Rising/falling edge<br>Trigger Position: Center of Buffer<br>Display: 2.4" Color TFT LCD with 320*240 Resolution<br>Model: / (optional)<br><br><br>This digital oscilloscope has similar bandwidth as but contains significant improvements in structure, mechanism and operation. It features high sensibility, light and portable size, 2.4-inch TFT screen and protective case. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.<br><br>Package List:<br>1 * Probe<br>1 * adapter<br>1 * Oscilloscope<br>1 * Users Manual<br>1 * BNC-clip cable<br>
