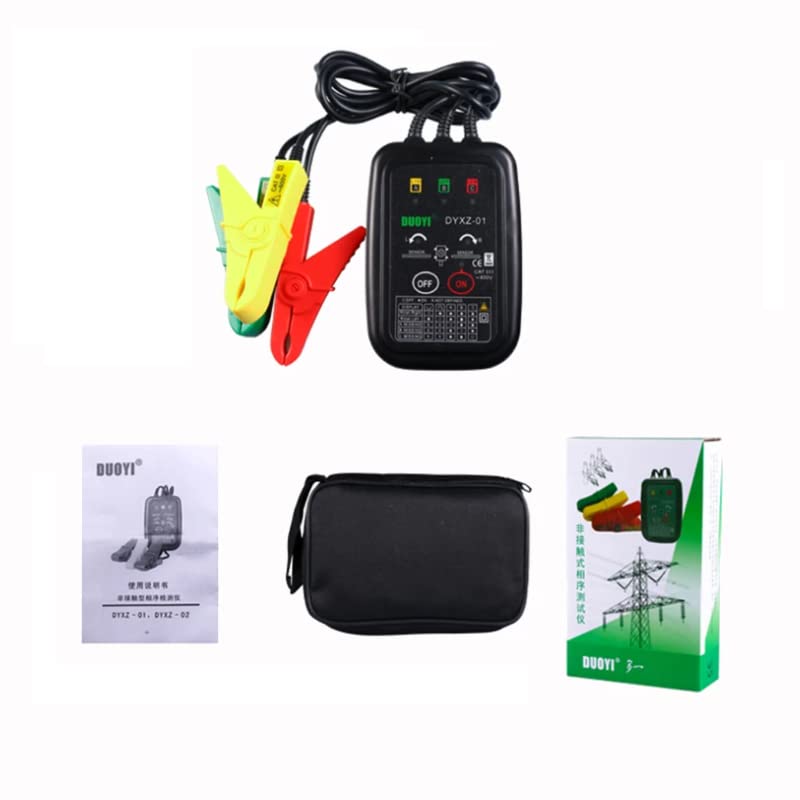

DUOYI DYXZ-01 3 Phase Rotation Tester 70V~600V AC Non-Contact Phase Indicator Detectors Circuit LED Break Test Voltage Detector Meter

Specifications:Function:Phase detection (positive/negative)Voltage detection method:Static inductionObject to be connected:Insulated wire (nominal sectional area of the conductor: 2 to 120mm2,finished outer diameter: up to 17mm)Performance-guarantee voltage range:3-phase, 70V to 600 VAC (sine wave,continuous)Operating frequency range:45Hz to 66HzPhase-detection:Positive phase sequence:indication The four phase-sequence lamps blink order (clockwise) and the buzzer sounds intermittently.Negative phase sequence:The four phase-sequence lamps blink in order (counterclockwise) and the buzzer sounds continuously.Line-voltage indication:R-S lamp, S-T lampPower on lamp: lights up (Power ON) blinks (Battery Low)Operating temperature and humidity:-10 to 40(32 to 104), 80%RH or less ( with no condensation)Storage temperature and humidity:-20 to 60 (-4 to 140), 80%RH or less (with no condensation)Location for use:Altitude up to 2000m(6562 feet), indoorsMaximum rated voltage to earth:600VDielectric strength:5.4kVrmsPower supply:Rated supply voltage 1.5VDC×2 Two AA size batteriesMaximum rated power:300mVAAuto Power Off(This function can not Be canceled.):The power will be turned off automatically if the Instrument remains idle for 15 minutes after the power is turned on.Cable length:Approx. 0.7mDimensions and mass:70W×75H×30DmmApprox. 200gApplicable standards:Safety EN61010-1:2001,EN61010-031:2002Pollution degree2, Measurement category CAT III(600V)(anticipatedtransient overvoltage 6000V)EMC EN61326:1997+A1:1998+A2:2001

• 1.Non-contact phase rotation tester designs for quick , easy and accurate detection of three phase sequence in motor installation and repair . The non-connection to insulated conductor avoids uncertain and difficult connections to bare high voltage wires.
• 2.This is a phase detector, designed to perform phase sequence checks and live line checks of a 3-phase circuit using a static induction voltage clip.
• 3.Can also detect the motor rotation with non-contact magnet detection method.

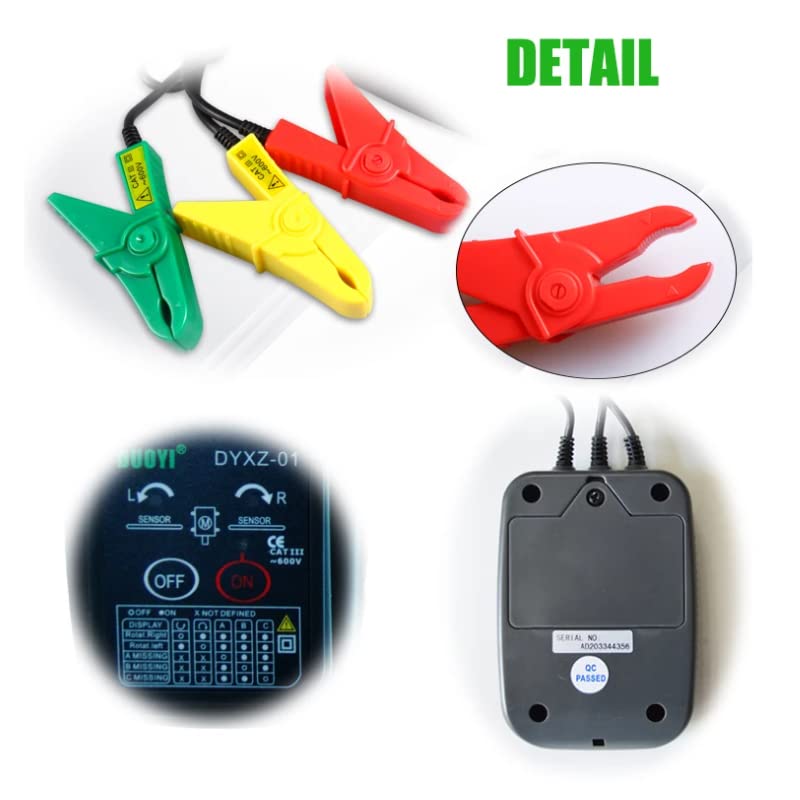

• 4.The static induction voltage clips are used to be able to clip on a cladded wire.It is small with a CAT 600V safety rating.

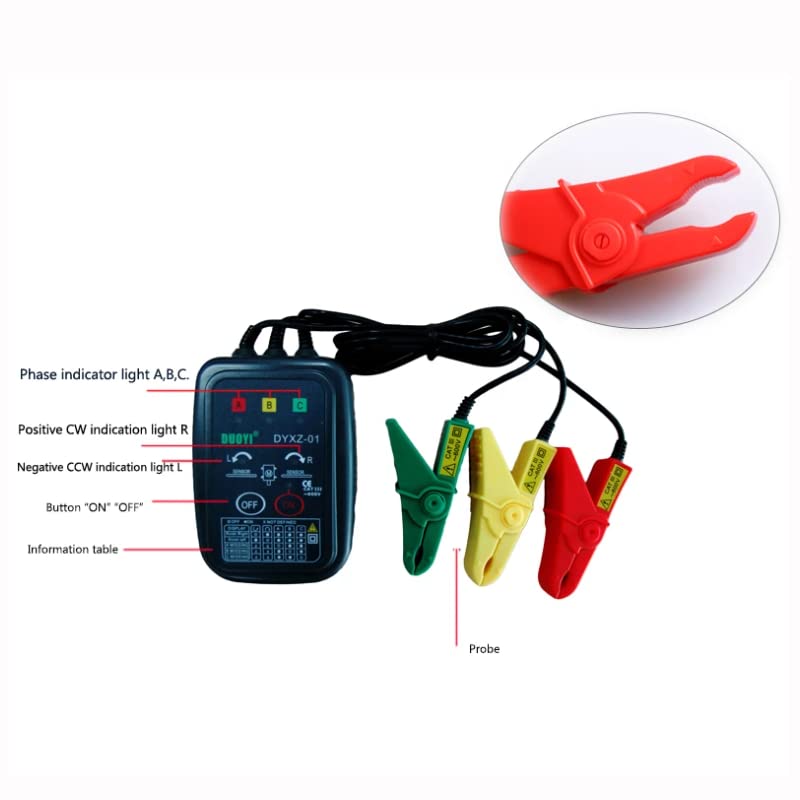

• 5.Red LED lamps are used to make the indication visible in dimly lit areas.The direction of phase sequence can be checked easily using the LED lamps, which blink in order.
