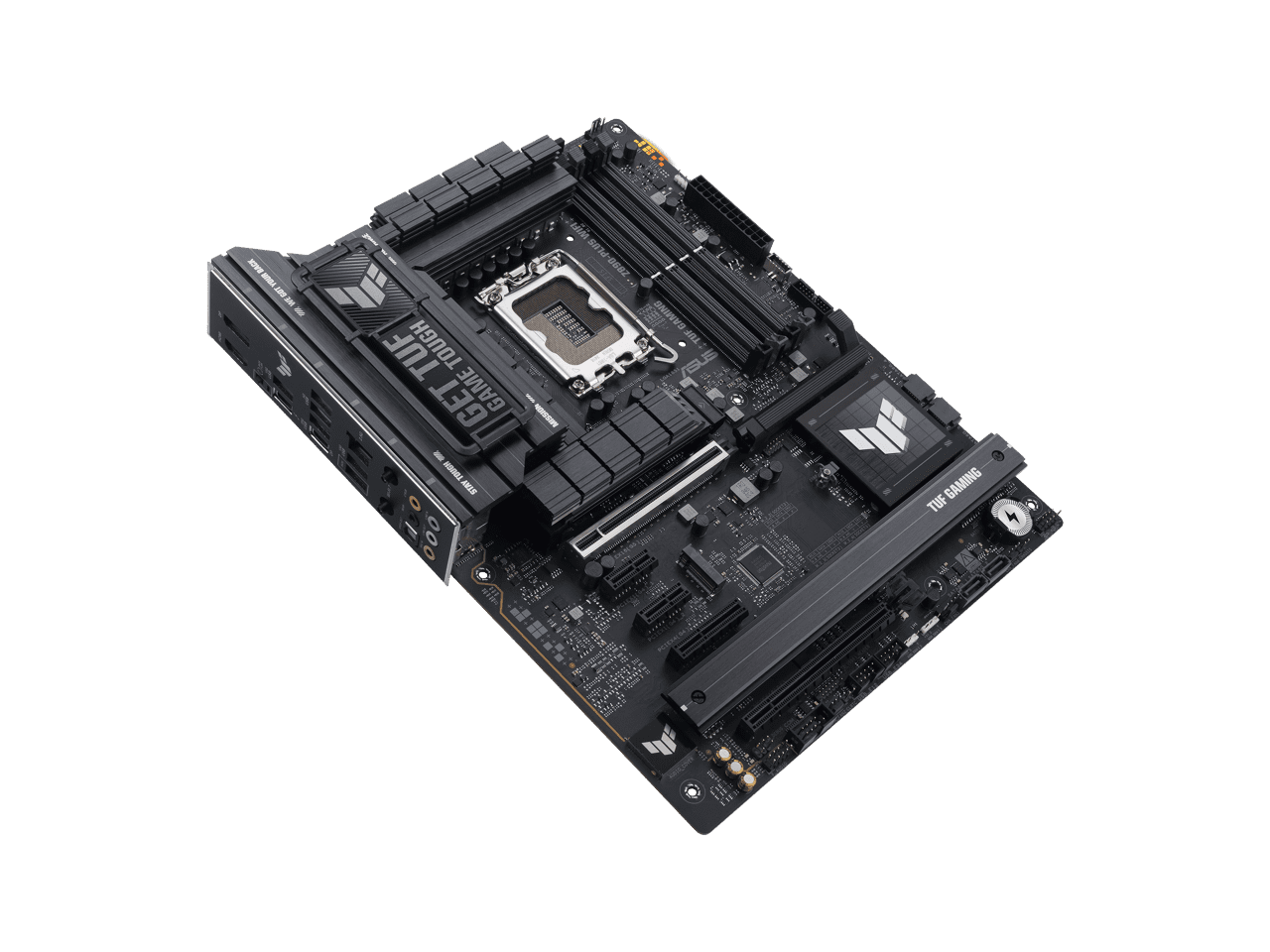

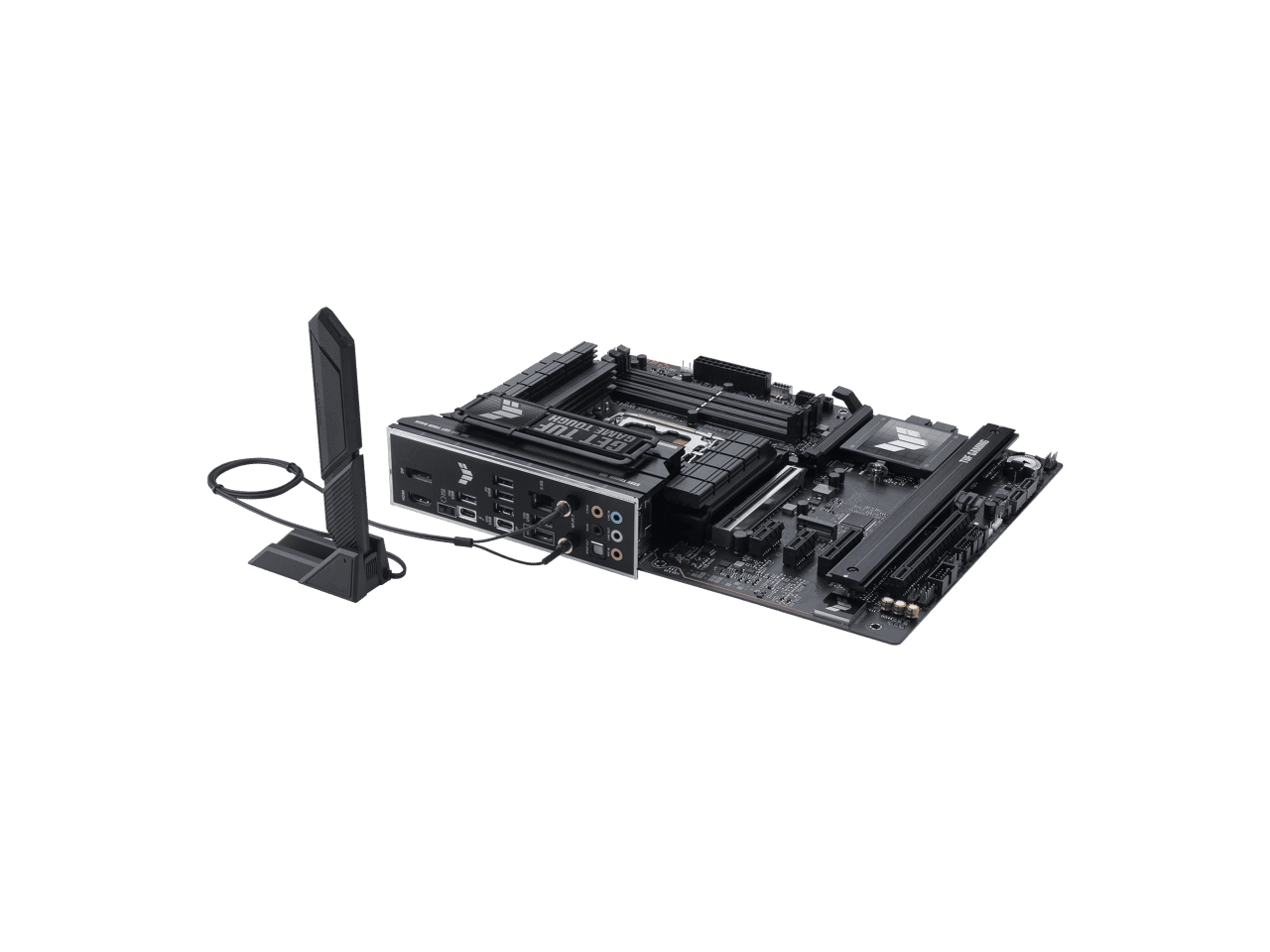

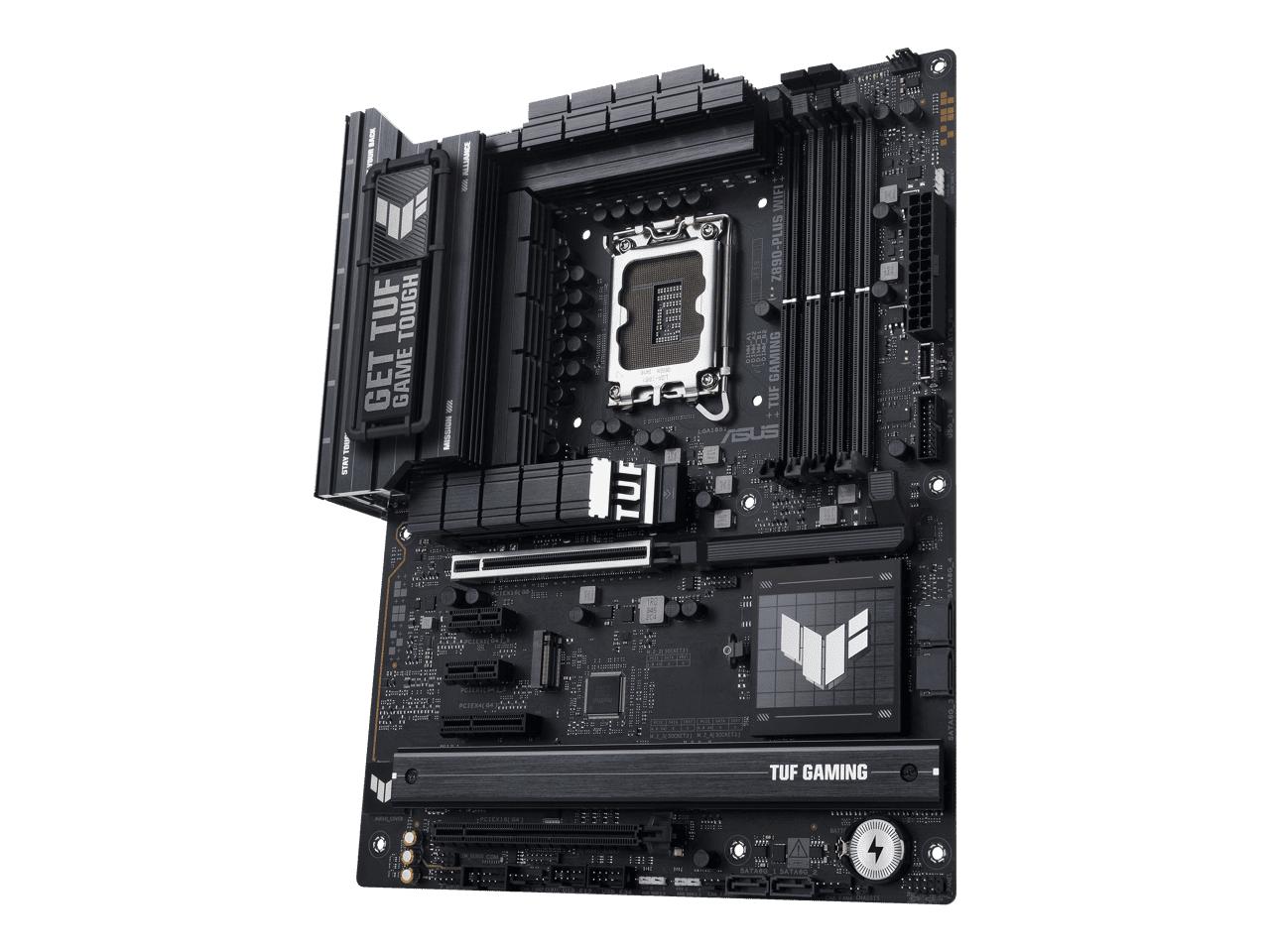

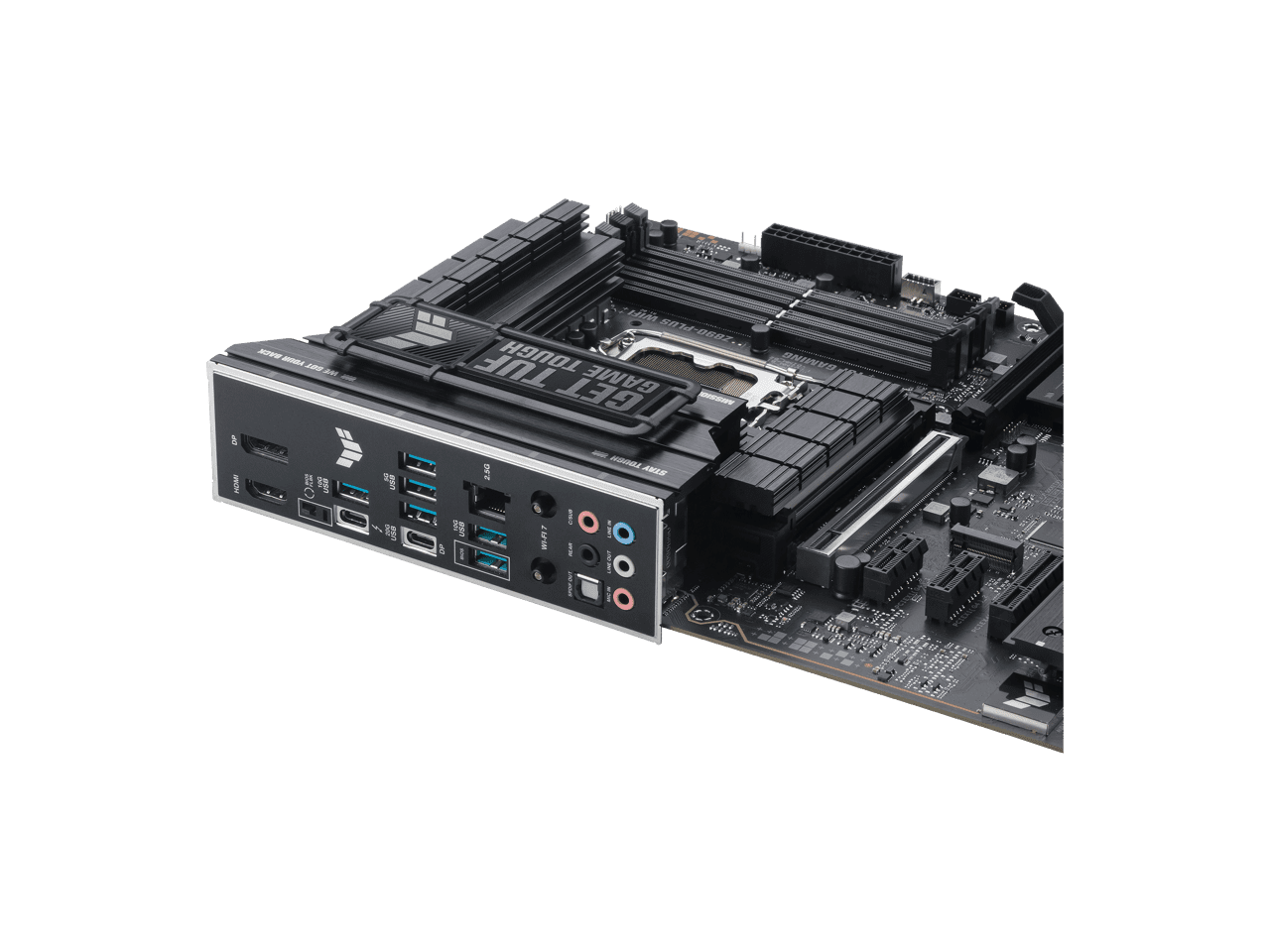

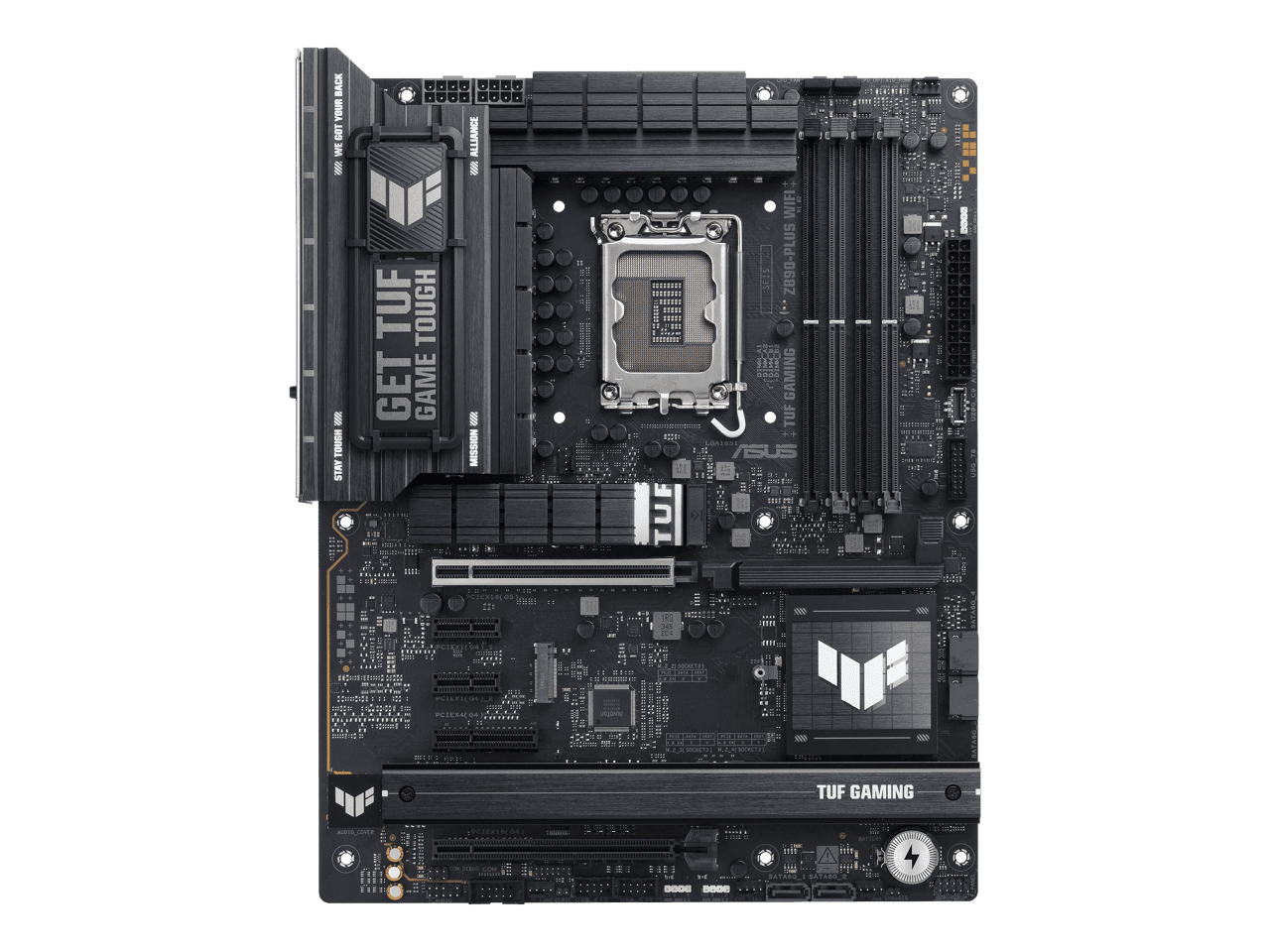

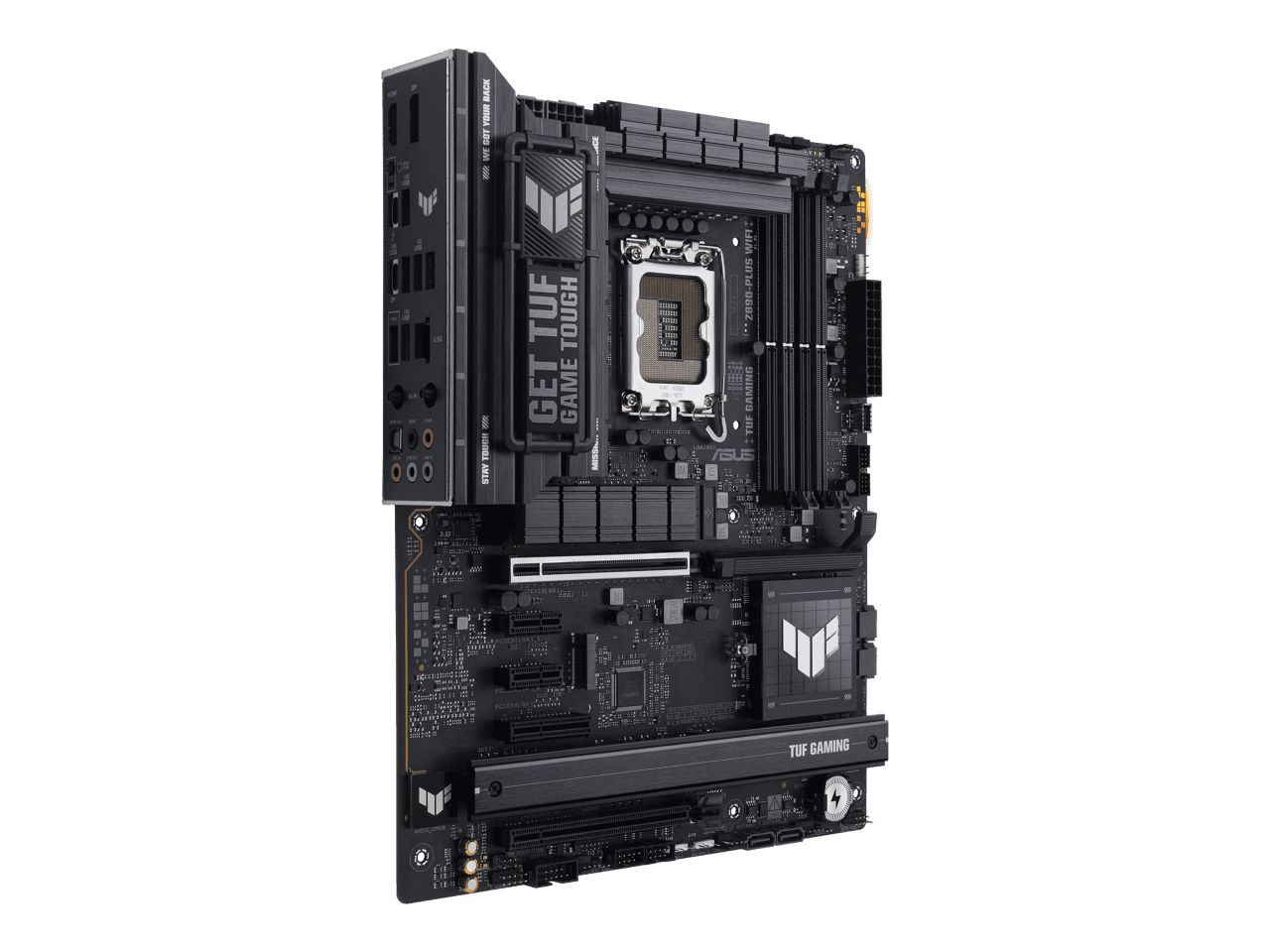

Asus TUF GAMINGZ890-PLUS WIFI GAMING WIFI Z890 LGA 1851 ATX Motherboard
Product details
| Management number | 230435968 | Release Date | 2026/06/18 | List Price | US$106.40 | Model Number | 230435968 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<b><u>Technical Information</u><br></b><br><b>AI-powered:</b> Yes<br><br><b><u>Processor & Chipset</u><br></b><br><b>Chipset Manufacturer:</b> Intel<br><b>Chipset Model:</b> Z890<br><b>Total Processor Supported:</b> 1<br><b>Processor Socket:</b> Socket LGA-1851<br><b>Processor Supported:</b> Core<br><br><b><u>Memory</u><br></b><br><b>Number of Memory Slots:</b> 4<br><b>Memory Form Factor:</b> DIMM, UDIMM<br><b>Maximum Memory Supported:</b> 192 GB<br><b>Memory Technology:</b> DDR5 SDRAM<br><br><b><u>I/O Controller</u><br></b><br><b>Controller Type:</b> Serial ATA/600<br><b>RAID Supported:</b> Yes<br><b>RAID Levels:</b> 0, 1, 5, 10<br><br><b><u>Video</u><br></b><br><b>Onboard Video:</b> CPU Dependent Video<br><br><b><u>Audio</u><br></b><br><b>Audio Channels:</b> 7.1<br><br><b><u>Network & Communication</u><br></b><br><b>Bluetooth:</b> Yes<br><b>Bluetooth Standard:</b> Bluetooth 5.4<br><b>Gigabit Ethernet:</b> Yes<br><b>2.5Gigabit Ethernet:</b> Yes<br><b>Wireless LAN:</b> Yes<br><b>Wireless LAN Standard:</b> IEEE 802.11be<br><br><b><u>I/O Expansions</u><br></b><br><b>Total Number of Expansion Slots:</b> 5<br><b>PCI Express Standard:</b> PCI Express 5.0, PCI Express 4.0<br><b>Total Number of PCI Express Slots:</b> 5<br><b>Number of PCI Express x1 Slots:</b> 2<br><b>Number of PCI Express x4 Slots:</b> 1<br><b>Number of PCI Express x16 Slots:</b> 2<br><br><b><u>Interfaces/Ports</u><br></b><br><b>Total Number of USB Ports:</b> 8<br><b>S/PDIF:</b> Yes<br><b>HDMI:</b> Yes<br><b>HDMI Version:</b> 2.1<br><b>DisplayPort:</b> Yes<br><b>Number of Network (RJ-45) Ports:</b> 1<br><b>Thunderbolt:</b> Yes<br><b>Number of Thunderbolt 4 Ports:</b> 1<br><br><b><u>Onboard Interfaces</u><br></b><br><b>Number of SATA Interfaces:</b> 4<br><b>Number of M.2 Interfaces:</b> 4<br><b>Total Number of Onboard USB Ports:</b> 7<br><b>Number of Onboard USB 2.0 Ports:</b> 4<br><br><b><u>Physical Characteristics</u><br></b><br><b>Form Factor:</b> ATX<br><b>Width:</b> 12"<br><b>Depth:</b> 9.6"
- Advanced AI PC-ready motherboard
- 16+1+2+1 80A DrMOS power stages for stable power delivery
- PCIe 5.0 and DDR5 support for high-speed components
- Wi-Fi 7 and 2.5Gb Ethernet for fast connectivity
- Four M.2 slots for extensive storage options
- Robust thermal design with large VRM heatsinks and AI Cooling II
| Cpu socket type | LGA 1851 |
|---|---|
| Motherboard form factor | ATX |
| Memory configuration | DDR5 |
| Proc. brand | Intel |
| Max RAM | 192 GB |

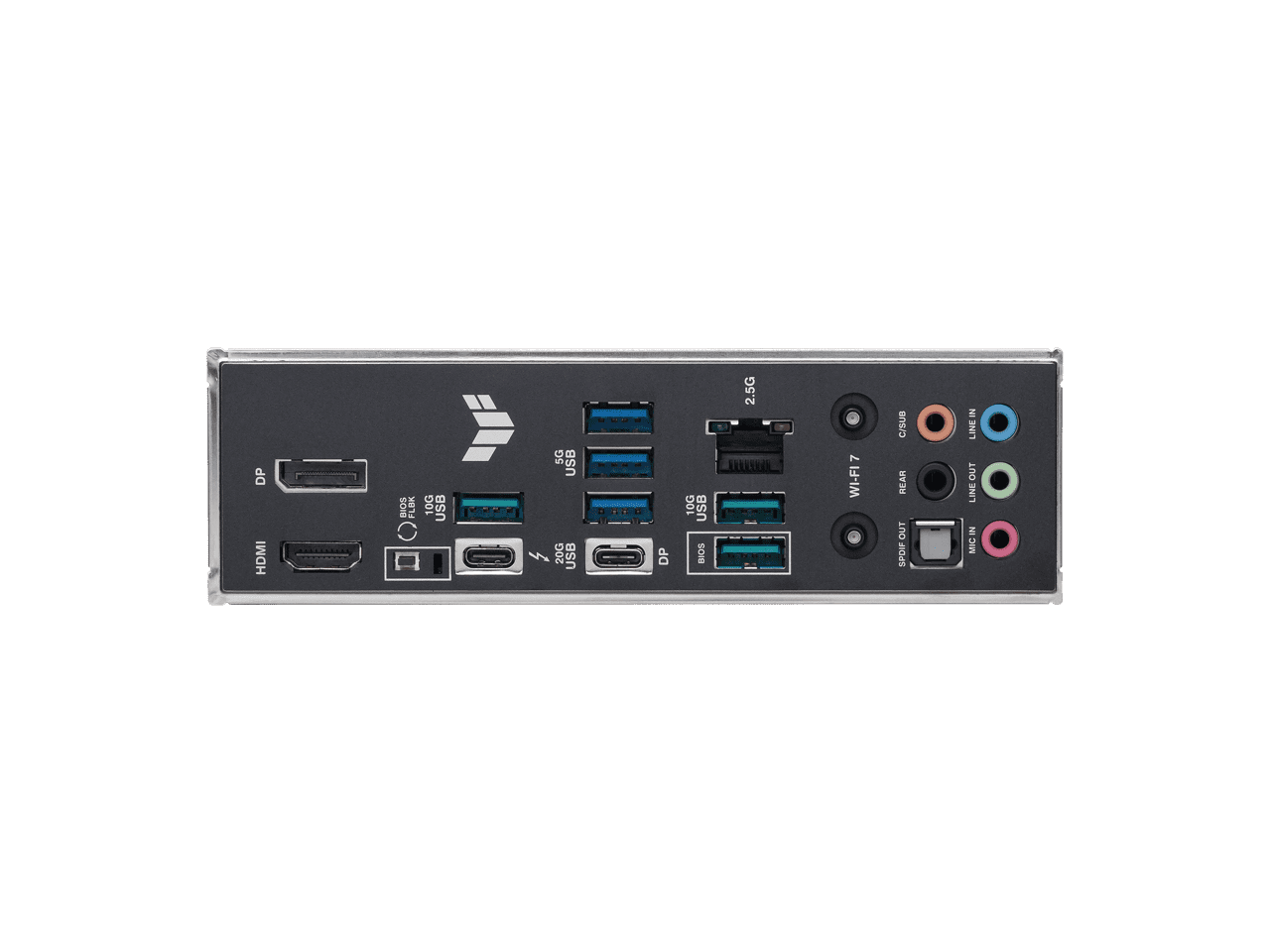

| Inputs/Outputs | Outputs - S/PDIF, HDMI, DisplayPort, Thunderbolt |
| Graphic card | onboard graphics (CPU required) |
| Brand | ASUS |
| In/Out type | Wireless |
| Number of ports | 10 |
| Input/output quantity | 18 |
| Model name | GAMINGZ890-PLUS WIFI |

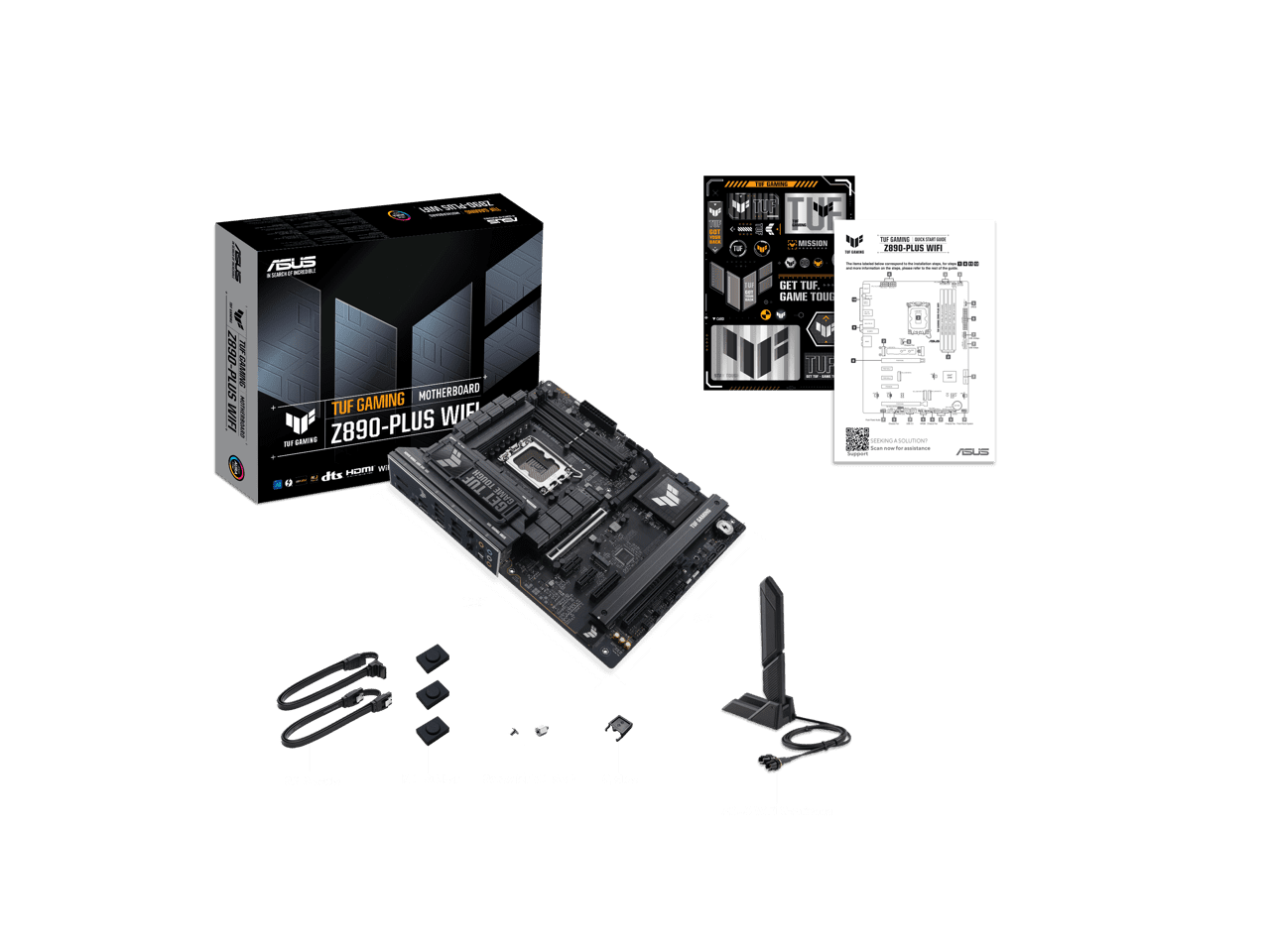

| Accessories | Serial ATA cable, M.2 rubber package, M.2 screw package, TUF GAMING sticker, ASUS Wi-Fi Q-antenna, M.2 Q-Slide, TUF GAMING removable nameplate, Software |
| Has written warranty | No |
| Height | 2.5" |
